LIBA Stack Parking Solution
An autostacker is the perfect solution in case of parking shortage. Our flexible, mechanical parking systems have several parking levels. They are therefore well suited for underground garages as well as single-family and multi-family houses. Depending on the model, there is space for two to six cars in the double parking garage. With a parking space load of 2000kg to 2600kg almost every car can be parked comfortably on it. Our double parkers are characterized by their special user-friendliness: Your vehicle is made available to you by simply turning the key. Due to the different parking space heights and widths of our models, you will find the right Parker for every object! Our stack parkers are characterized by low maintenance costs, high operating and functional safety (TÜV tested / CE certified)
Dependent parking is available if there is no pit when the parking system is built. This means that the upper vehicle can only be extended if the lower floor is not occupied by another car. Dependent parking systems are particularly suitable for retrofitting. This allows the parking space to be compacted without incurring high costs for digging a pit. Especially the ramp plates of the parking systems are exposed to enormous loads. Based on our experience, we have been able to develop drive-on plates for double parkers that have proven to be particularly durable. With these drive-on plates we can guarantee the high quality and longevity of our systems!


Car Stackers With Pit
SP-6
- Independent, flexible parking
- Vehicle heights up to 150 cm (with more ceiling height, correspondingly higher vehicles can be parked at the top)
- Vehicle lengths up to 500 cm
- Clear platform width up to 270 cm for EB and up to 500 cm for DB
- Pitch load 2000 kg per parking space

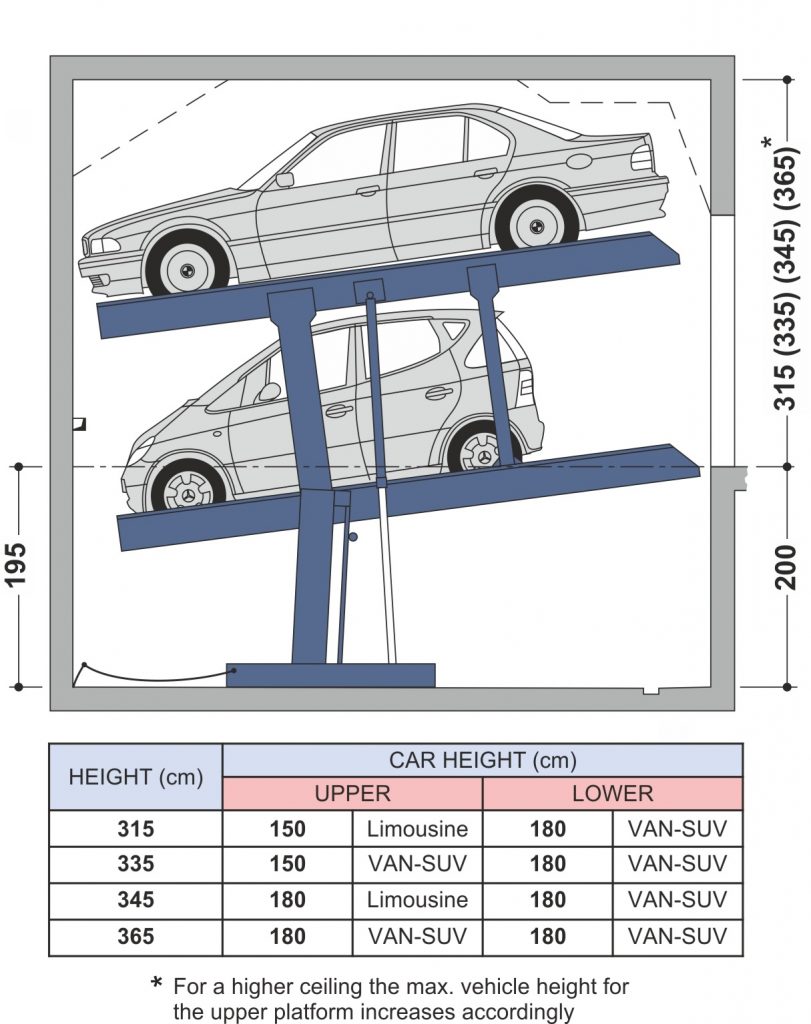

SP-8
- Independent, flexible parking
- Horizontal driving on the upper parking level, inclined driving on the lower parking level (8°= 14%)
- Vehicle heights up to 180 cm
- Vehicle lengths up to 520 cm
- Clear platform width up to 270 cm for EB and up to 500 cm for DB
- Pitch load 2000 kg per parking space

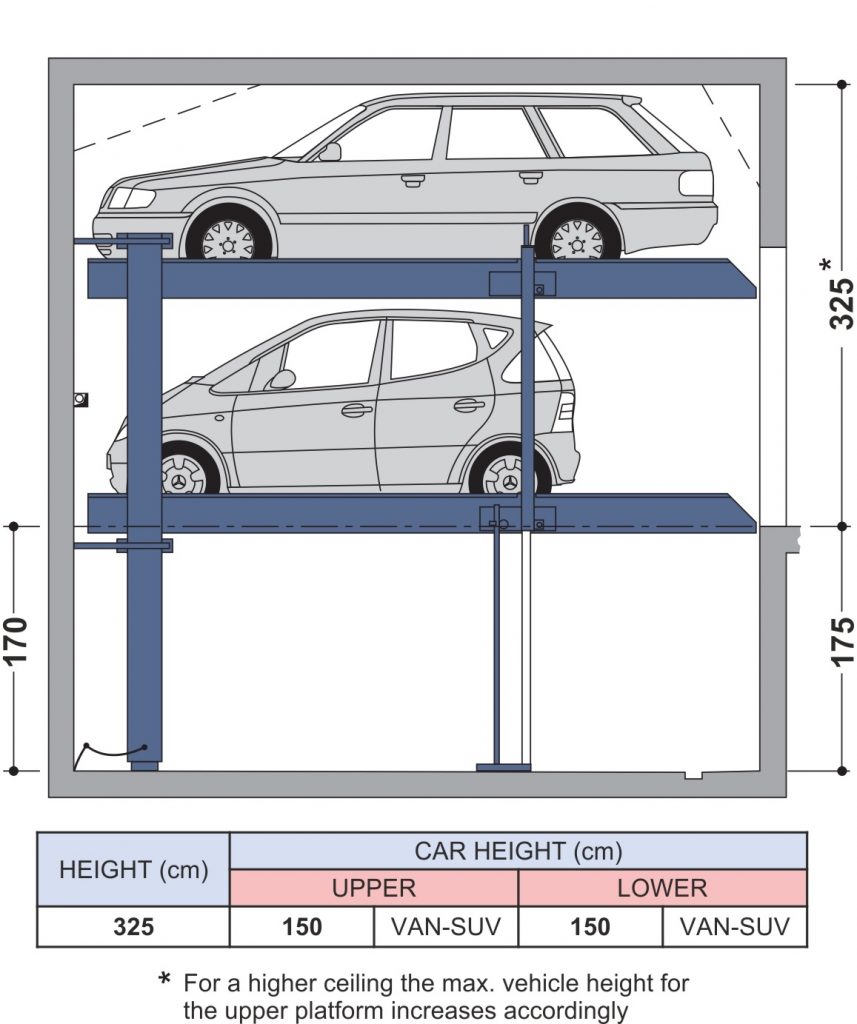

SP-22
- Independent, flexible parking
- Horizontal access to all parking levels
- Vehicle heights up to 195 cm
- Vehicle lengths up to 520 cm
- Clear platform width up to 270 cm for EB and up to 500 cm for DB (up to 540 for S22P variant)
- Parking space load 2000 kg per parking space, optionally 2600 kg per parking space (S22P variant)

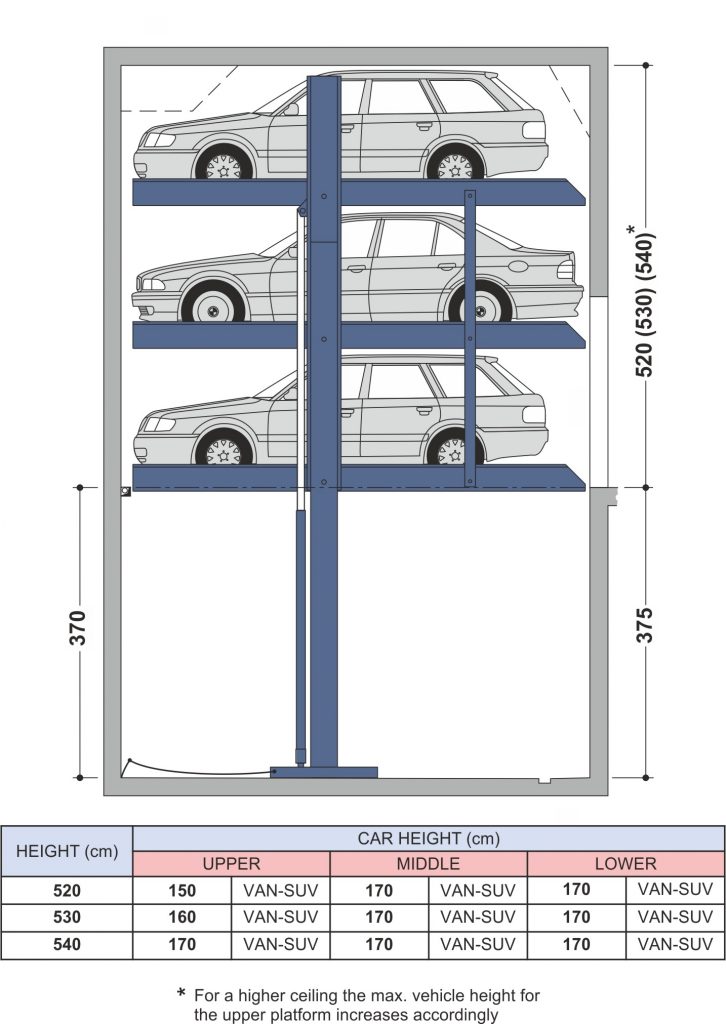

SP-3
- Independent, flexible parking
- Independent, flexible parking
- Horizontal access to all three parking levels
- Vehicle heights up to 170 cm
- Vehicle lengths up to 520 cm
- Platform width up to 270 cm for EB and up to 500 cm for DB
- Pitch load 2000 kg per parking space
SP-3
- Independent, flexible parking
- Independent, flexible parking
- Horizontal access to all three parking levels
- Vehicle heights up to 170 cm
- Vehicle lengths up to 520 cm
- Platform width up to 270 cm for EB and up to 500 cm for DB
- Pitch load 2000 kg per parking space
Car Stackers With Pit
SP-1
- Dependent parking
- Parking solution also possible without pit
- horizontal traffic on all parking levels
- Vehicle heights up to 160 cm
- Vehicle lengths up to 480 cm
- Platform width up to 230 cm
- Pitch load 2500 kg per parking space
SP-2
- Dependent parking
- Horizontal traffic on all parking levels
- Vehicle heights up to 200 cm
- Vehicle lengths up to 520 cm
- Platform width up to 250 cm for EB and up to 500 cm for DB
- Pitch load 2000 kg per parking space
