Parking Pallet Solution

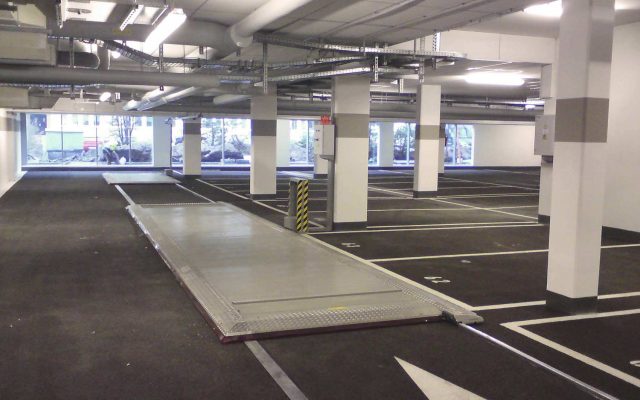

The pallet based automated car parking system is an interesting solution for creating up to 50 parking spaces. Drivers park their car on a pallet in a cabin. The cabin is the only interface between the driver and the car park. From this point everything is automatic. The door of the cabin closes and the car is transported downwards by lift. From there the car standing on the pallet is brought to a free parking space via roller conveyors.
The pallet based parking system is characterized by a very compact design. From the lift the pallets with the vehicles are moved directly to adjacent parking spaces. Car parking and removal follows according the puzzle principle.
PP-1
- Each pallet holds 1 vehicle
- Pallets operated on rails
- Vehicle measurement standard: width 206 cm,
length 500 cm, height 10 cm lower than headroom according - Standard design: 2.000 kg per parking space,
optional max. 2.600 kg EB - Retroactive installation possible depending on local conditions
PP-2
- Each pallet holds 2 vehicles
- Pallets operated on rails
- Vehicle measurement widths max. 190 cm,
lengths max. 500 cm, heights 10 cm lower than headroom - Standard design: 2.000 kg per parking space, optional 2.300 kg
- Retroactive installation possible depending on local conditions
